Here

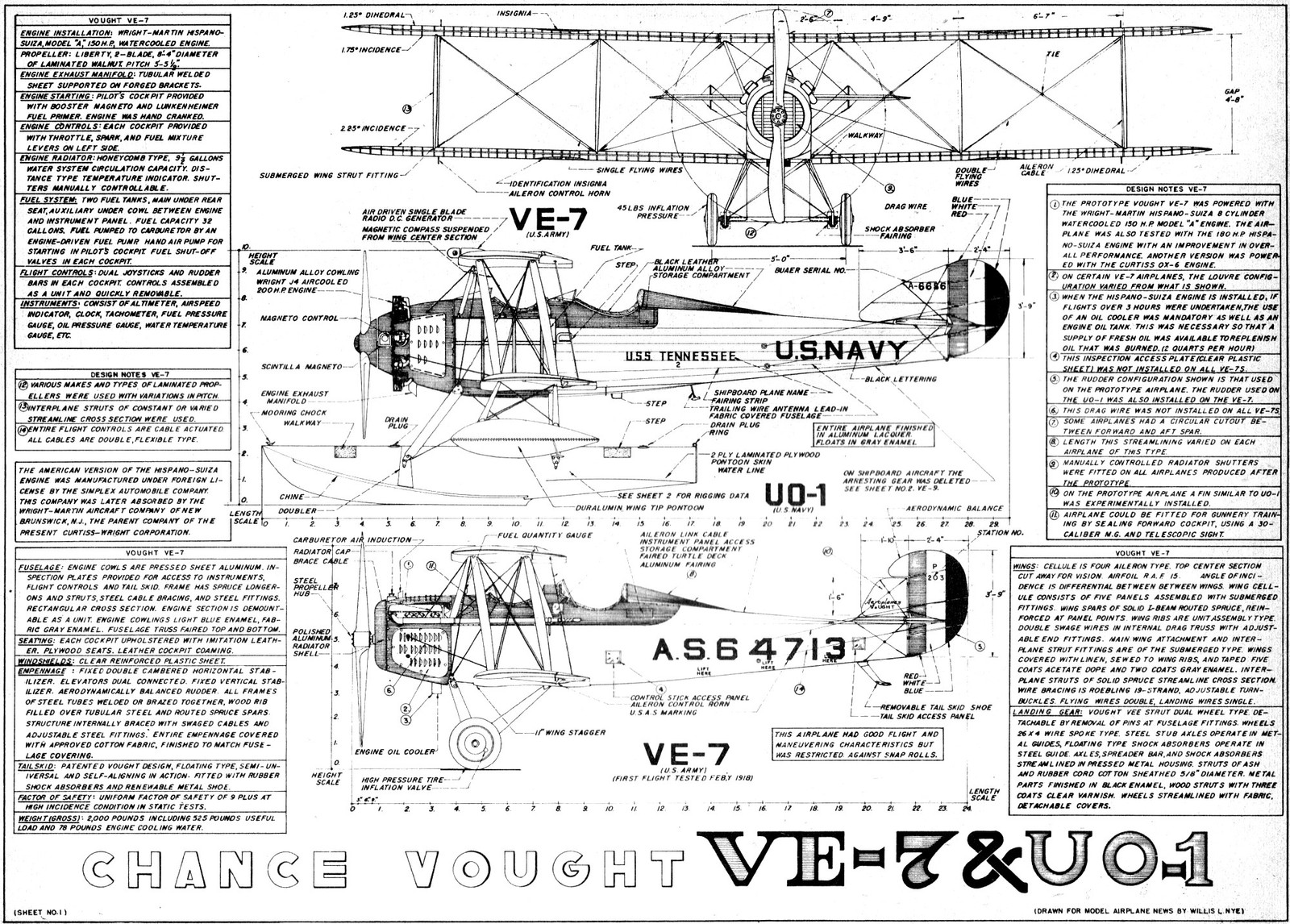

are two highly detailed 3-view drawings of the Chance Vought VE-7, VE-9 & UO-1 Army and Navy biplane types, as inked by Mr. Willis L. Nye.
It has a classic biplane profile that, at least with the VE-7 reminds me a lot of Peter Bower's Fly Baby Biplane. The second sheet has
the top plan view showing wings and horizontal stabilizer.
Chance Vought VE-7, VE-9 & UO-1 Army-Navy Types
By Willis L. Nye
Chance Vought VE-7 & UO-1 Detail Drawing
Chance Vought VE-7, VE-9 & UO-1 Detail Drawing
Posted January 30, 206
|
