Consolidated PBY-5A Canso (Catalina) at Erie Int'l Airport

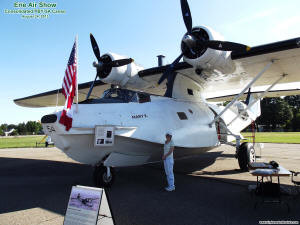

Supermodel Melanie next to Consolidated PBY-5A Canso - Airplanes and RocketsOn August 26, 2013, Melanie and I toured the inside of this Consolidated PBY-5A Canso (PBY-5 is the Catalina) while it was on display at the Erie International Airport. It was on tour by a crew from Canada, which is appropriate since it was this particular airplane was manufactured in Canada in 1944 by the Vickers company. World War II ended before it could ever see combat reconnaissance duty. The PBY-5A has a wingspan of 104 feet 0 inches and is powered by a pair of 1200 horsepower Pratt & Whitney R-1830-92 Twin Wasp radial engines. Top speed is 179 mph. It sported six .303 Vickers machine guns and could carry up to 2000 pounds of bombs and depth charges. Hopefully, these photos will be of use to scale model researchers.

See Jim Wander's amazing Guillows PBY-5A model.

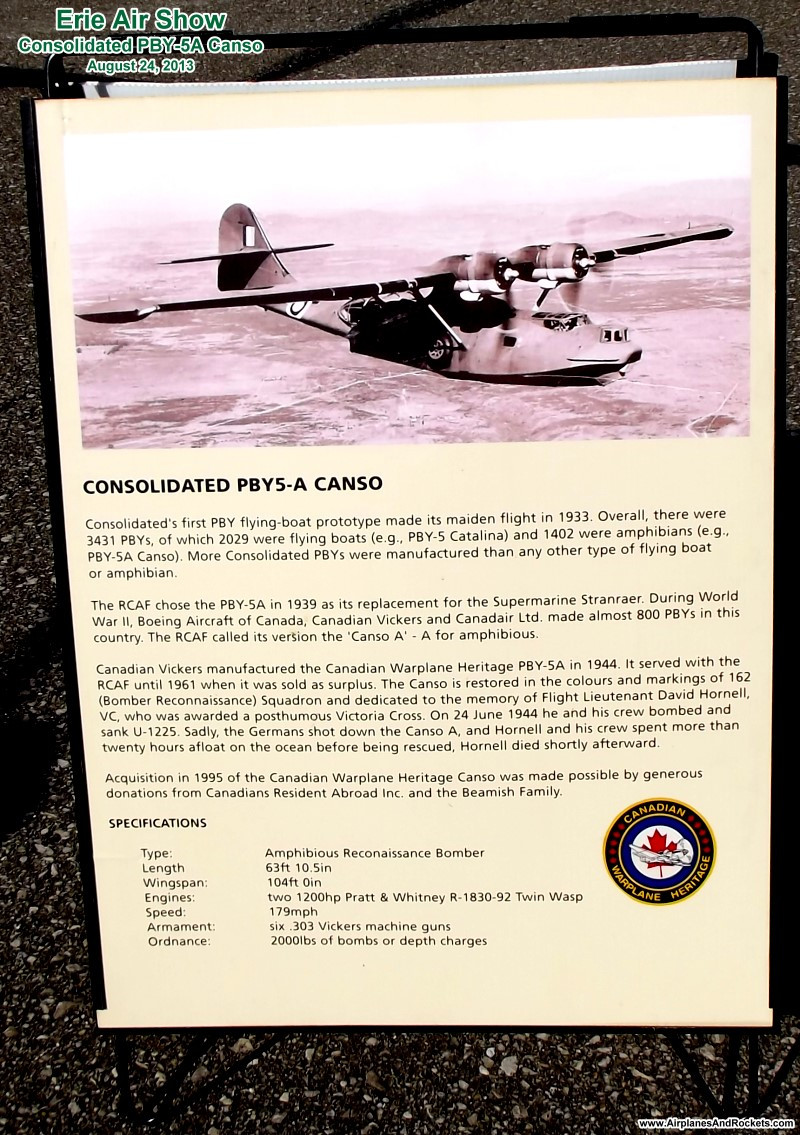

Consolidated PBY-5A Canso Specifications - Airplanes and Rockets

Consolidated PBY-5A Canso Specifications

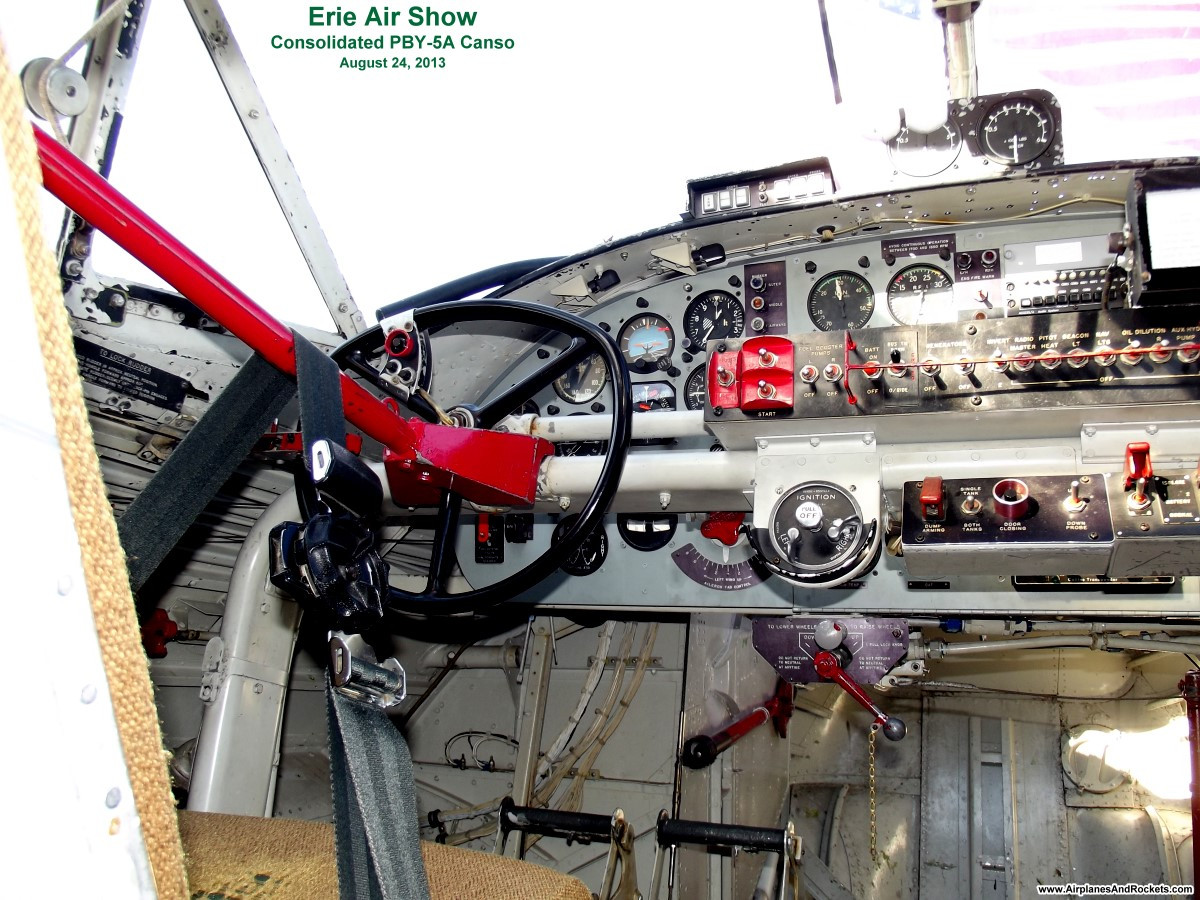

PBY-5A Canso Instrument Panel (pilot side) - Airplanes and Rockets

PBY-5A Canso Instrument Panel (pilot side)

PBY-5A Canso Throttles - Airplanes and Rockets

PBY-5A Canso Throttles

PBY-5A Canso Inside Fuselage Looking Rearward - Airplanes and Rockets

PBY-5A Canso Inside Fuselage Looking Rearward

Supermodel Melanie with PBY-5A Canso Crew Chief - Airplanes and Rockets

Melanie with PBY-5A Canso Crew Chief

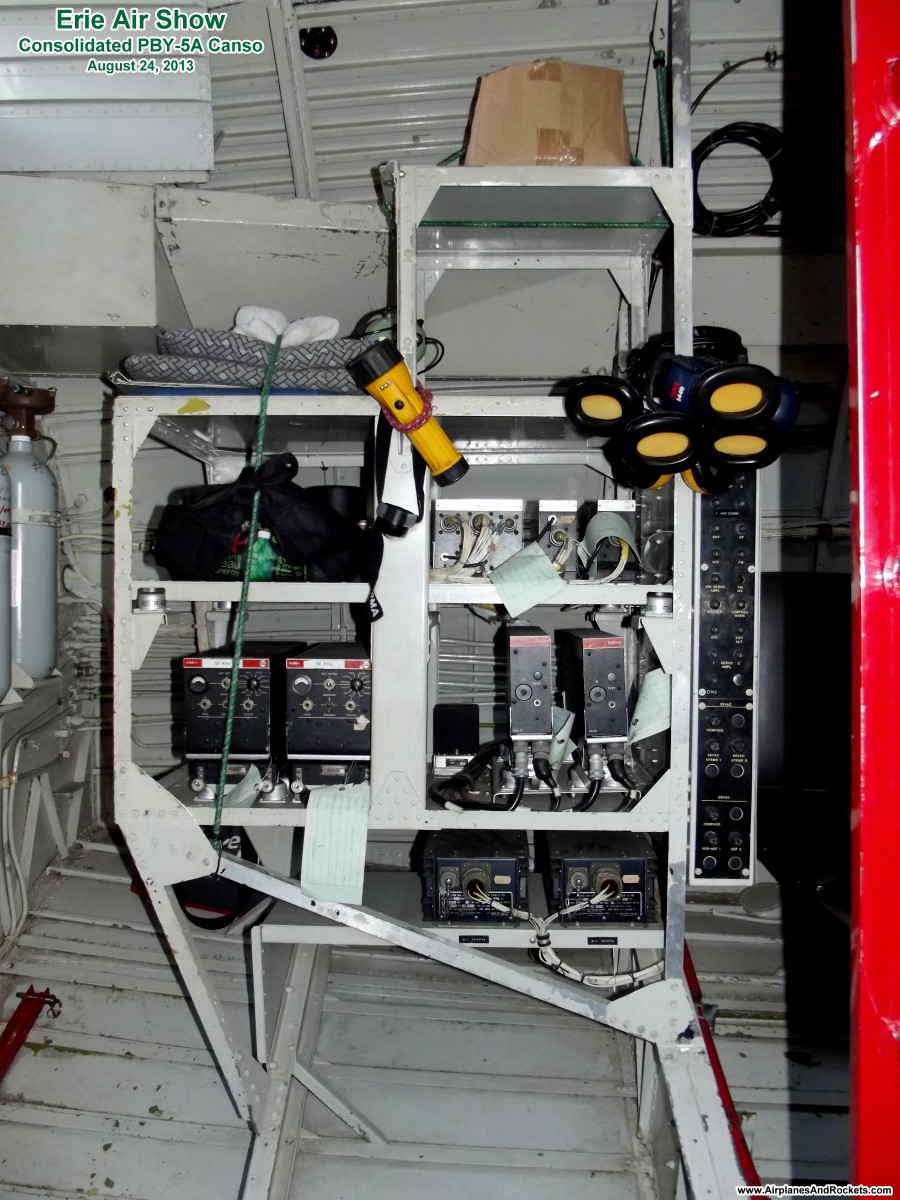

PBY-5A Canso Radio Rack - Airplanes and Rockets

PBY-5A Canso Radio Rack

PBY-5A Canso Instrument Panel (co-pilot side) - Airplanes and Rockets

PBY-5A Canso Instrument Panel (co-pilot side)

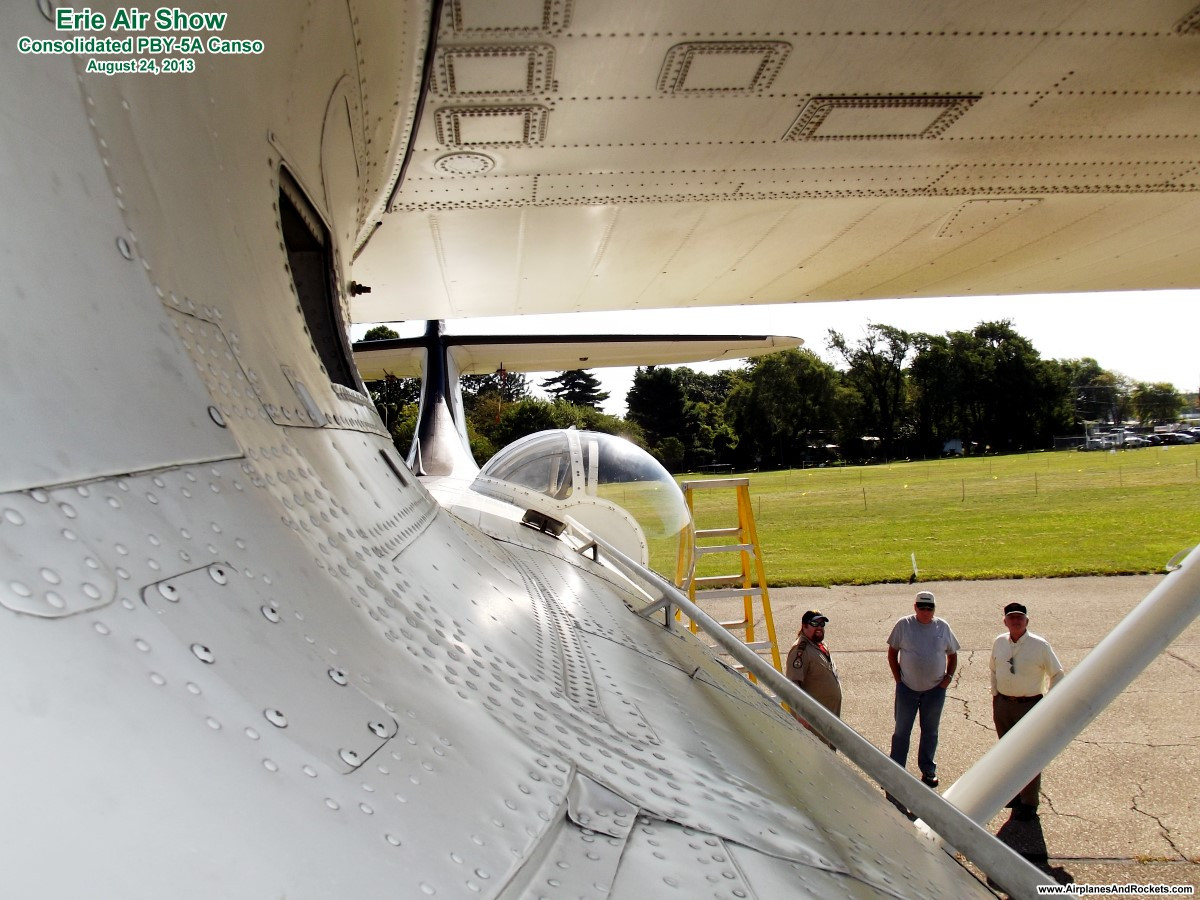

PBY-5A Canso View from Observation Porthole - Airplanes and Rockets

PBY-5A Canso View from Observation Porthole

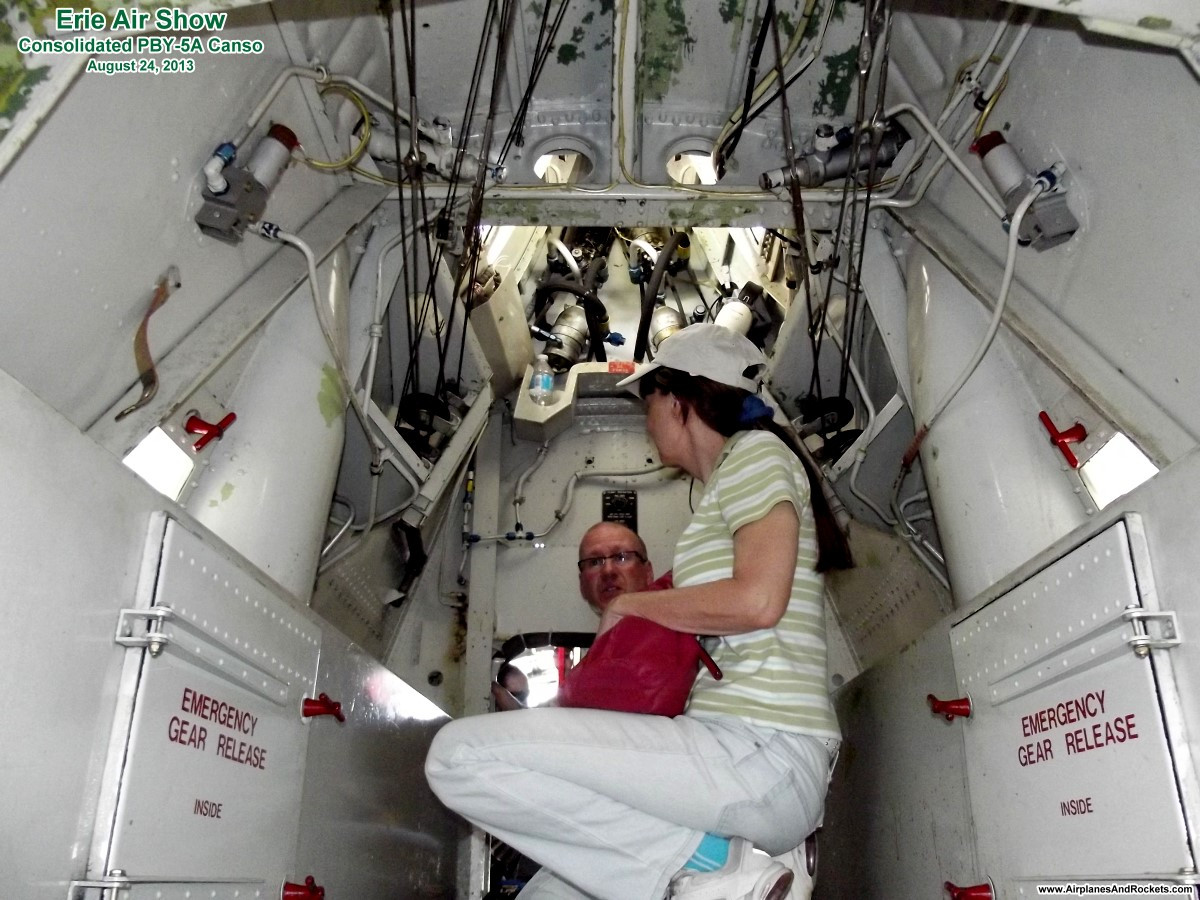

PBY-5A Canso Inside Fuselage Looking Foreward (Supermodel Melanie in foreground) - Airplanes and Rockets

PBY-5A Canso Inside Fuselage Looking Forward

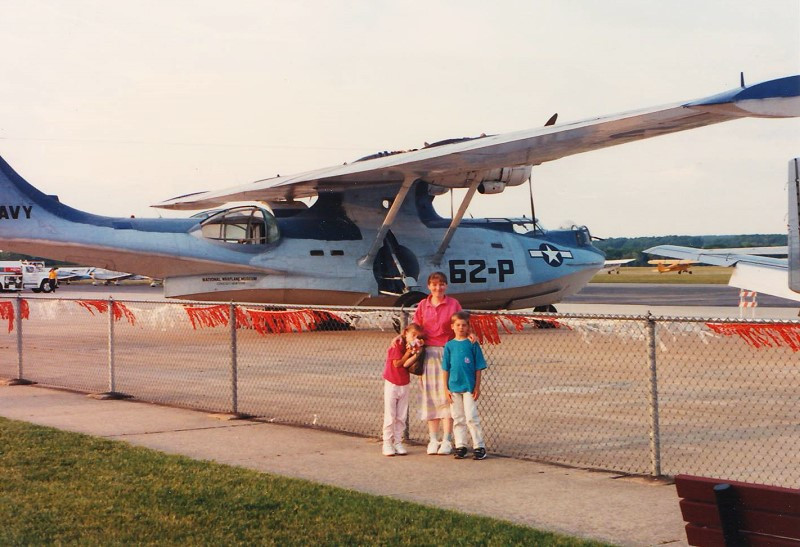

Philip, Sally & Supermodel Melanie Blattenberger with a PBY-5 Catalina - Airplanes and Rockets

Melanie, Philip, and Sally with PBY-5 Catalina at Frederick, Maryland air show





Posted May 21, 2022
(updated from original post on 10/5/2014)
