This Sketchbook was scanned from the September/October 1963 American Modeler, page 68. Most building tips are timeless. Even in this era of ready-to-fly (RTF), almost-ready-to-fly (ARF), bind-and-fly (BAF), etc., there are still many modelers who build their own aircraft. Nearly all top tier competition fliers build their own models, as do aficionados of vintage (aka old-timer) models. Some guys just would rather build than buy a pre-built airplane, whether from a kit or from plans.

Sketchbook

By H. A. Thomas

Got a new idea for construction, adjustment, or operation of model planes or R/C? "AM" pays $10 for each "hint & kink" used. Send rough sketch and description to Sketchbook, c/o American Modeler, Potomac Aviation Pub-lications, Inc., 1012 14th St., Washington, D.C. 20005.

Cut to friction fit to secure tank in position - Airplanes and Rockets

Block of flexible urethane foam, cut to friction fit to secure tank in position.

Knot pulled against disc by rubber tension - Airplanes and Rockets

Knot pulled against disc by rubber tension.

Ribs, spars pinned to beaverboard during wing assembly - Airplanes and Rockets

Ribs, spars pinned to beaverboard during wing assembly.

Torque rod from escapement - Airplanes and Rockets

Torque rod from escapement.

Add pressure lead "A" to filler - Airplanes and Rockets

Note: To pressurize regular fuel system, add pressure lead "A" to filler and seal vent tube at "B."

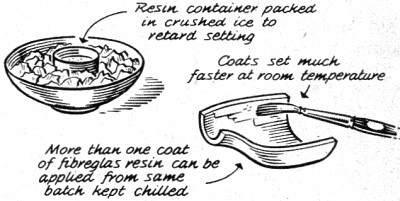

Resin container packed in crushed ice to retard setting - Airplanes and Rockets

Resin container packed in crushed ice to retard setting.

Rubber bands attached to wing dowels - Airplanes and Rockets

Rubber bands attached to wing dowels.

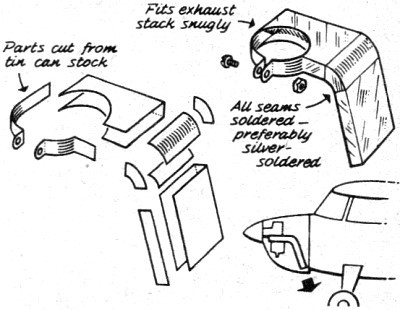

All seams soldered - Airplanes and Rockets

All seams soldered - preferably silver-soldered.





Sketchbook from September 1962 American Modeler Magazine - Airplanes and Rockets





This Sketchbook was scanned from the September/October 1963 American Modeler, page 68.
